使用Nginx配置HTTPS，制作自签证书实现IP访问通过HTTPS

一、安装Nginx

yum -y install gcc pcre-devel zlib-devel openssl openssl-devel

nginx下载地址：https://nginx.org/download/

选择版本下载，nginx-1.9.9.tar.gz

## 解压

tar -zxvf nginx-1.9.9.tar.gz

##进入nginx目录

cd nginx-1.9.9

## 配置，指定目录增加ssl模块

./configure --prefix=/data/nginx --with-http_stub_status_module
--with-http_ssl_module

编译，安装

make && make install

创建ssl文件夹

mkdir ssl && cd ssl

Ø  生成一个RSA密钥

[root@localhost ssl]#  openssl genrsa -des3 -out nginx.key 1024  #实际使用中看服务器性能，如果足够好也可以使用4096位秘钥

Generating RSA private key, 1024 bit long modulus

.......++++++

...++++++

e is 65537 (0x10001)

Enter pass phrase for nginx.key:                 #输入密码，自定义，不少于4个字符

Verifying - Enter pass phrase for nginx.key:     #确认密码

Ø  生成一个证书请求

[root@localhost ssl]# openssl req -new -key nginx.key -out nginx.csr

Enter pass phrase for nginx.key:                             #输入刚刚创建的秘密码

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [XX]:CN                      #国家名称

State or Province Name (full name) []:ShangHai            #省

Locality Name (eg, city) [Default City]:ShangHai          #市

Organization Name (eg, company) [Default Company Ltd]:ACBC     #公司

Organizational Unit Name (eg, section) []:Tech     #部门

Common Name (eg, your name or your server's hostname) []:*.mydomain.com       #注意，此处应当填写你要部署的域名，如果是单个则直接添加即可，如果不确定，使用*，表示可以对所有mydomain.com的子域名做认证

Email Address []:admin@mydomain.com    #以域名结尾即可

Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []:        #是否设置密码，可以不写直接回车

An optional company name []:    #其他公司名称 可不写

Ø  创建不需要输入密码的RSA证书，否则每次reload、restart都需要输入密码

[root@localhost ssl]# openssl rsa -in nginx.key -out nginx_nopass.key

Enter pass phrase for nginx.key:        #之前RSA秘钥创建时的密码

writing RSA key

Ø  签发证数

[root@localhost ssl]# openssl x509 -req -days 3650 -in nginx.csr  -signkey nginx.key -out nginx.crt

Signature ok

subject=/C=CN/ST=ShangHai/L=ShangHai/O=ACBC/OU=Tech/CN=*.mydomain.com/emailAddress=admin@mydomain.com

Getting Private key

Enter pass phrase for nginx.key:          #RSA创建时的密码

二、配置Nginx

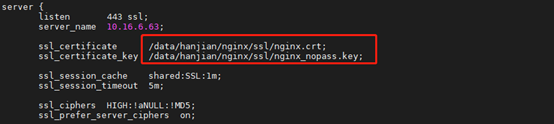

修改配置文件（注意域名和443端口）

配置upstream

配置证数文件的地址

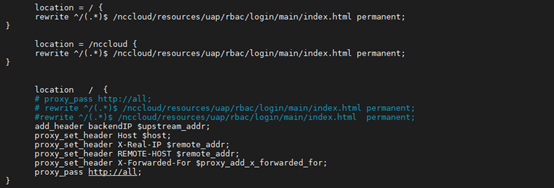

配置location

检查配置文件是否正确

重启Nginx
